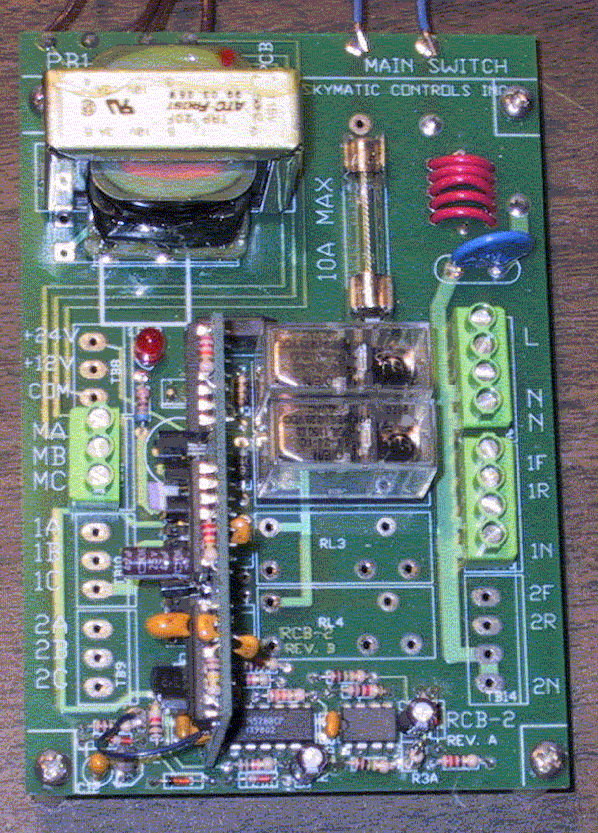

RCB-2 Controller

RCB-2 Controller

DESCRIPTION RCB-2 is a small motor controller for Smarthouse applications. It is used in conjunction with single phase motors rated 120VAC, 5 Amps maximum and features a low voltage, 3 wire control, set up to be operated by momentary switches, pushbuttons or relay contacts. The main advantage of the motors controlled by RCB-2 is that they can be run from multiple locations by simply paralleling the input controls. Control computers or security systems can interface with RCB-2 using 'A' Form dry contacts rated 0.1 Amps min.; one contact for each direction. RCB-2 system is programmable by jumper to control either light loads (i.e. Vertical blinds) or heavier loads (i.e. Drapes). Momentary control switches allow the motor to be set to be jogged or to run continuously. Continuous operation is achieved by maintaining pressure on the control switch for approximately 1/2 second. This causes the logic to latch in and as a result the motor continues to run. The motor then can be stopped at any time by depressing the control switch momentarily. Otherwise, the motor will run until the end of the track where the limit switch (built usually into the drive), turns the motor off. Additionally, the Motor Current Sensing circuit de-energizes relays at the end of motor run. The RCB-2 is housed in a steel enclosure(Board only is also available when ordering, please see ordering selection at: http://www.skymatic.com/Ordering_rcb.pdf). External wiring should be done according to the Electrical Code, by qualified personnel only.


Power Requirements: 120VAC, 6A, single phase
Control Voltage (internal)
Relay Board 28 VDC
Logic Modules:   12 VDC
Number of Relays 4
Output Contact Rating 120VA, 10A MAX. resistive
Operating Temperature -100C to +500C
Duty Cycle Continuous
Dimensions: 8x8x4 in.
Mounting Position: As Required
Terminal Wire Size: No. 16 to 22AWG

LIMITED WARRANTY
Skymatic Controls inc. believes in the quality of its products. As a result, Skymatic Controls Inc. warrants that the product is free from defect of material or workmanship when used within specifications. At its sole discretion, Skymatic Controls Inc. agrees to repair, replace or refund the purchase price of the defective product if written notice is received within TWO (2) years of the date of purchase. Shipping costs are to be assumed by the customer. Skymatic Controls Inc. assumes no liability, expressed or implied, beyond the obligation to repair, replace or refund the purchase price of the defective product. This warranty is invalid if the product has been modified, repaired, or altered in any way not authorized previously by Skymatic Controls Inc. in writing.
